1.3' IPS Display for Raspberry Pi4
$20.72
Sale price
$20.72
Regular price
$25.90

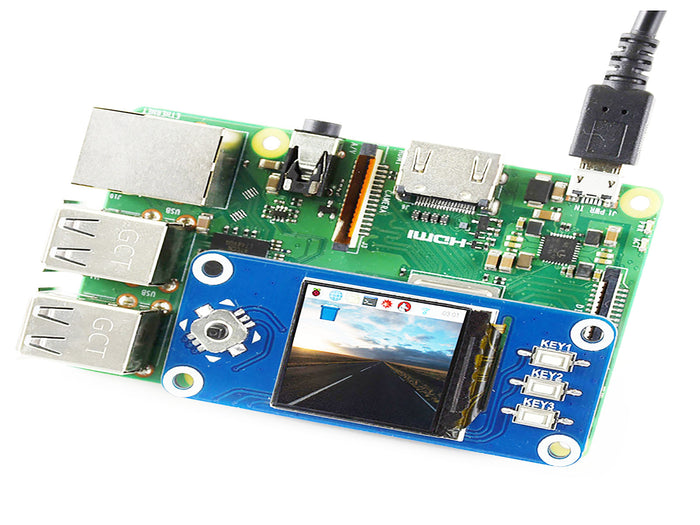

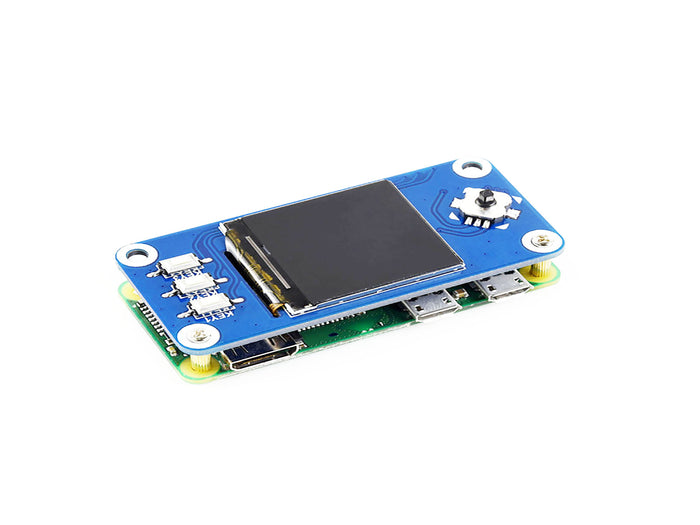

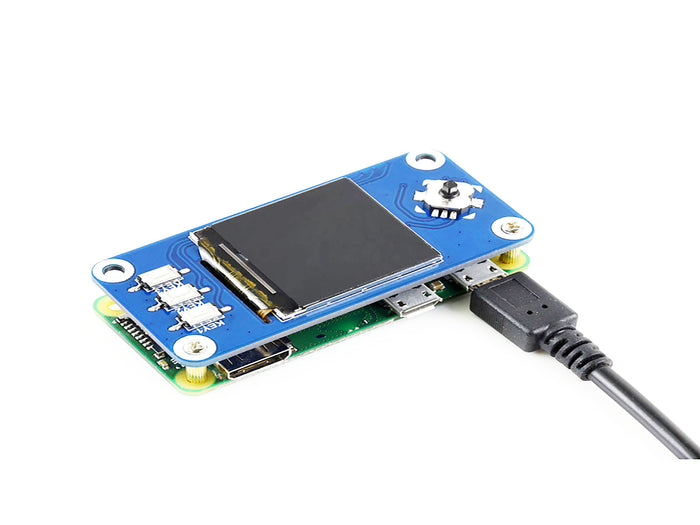

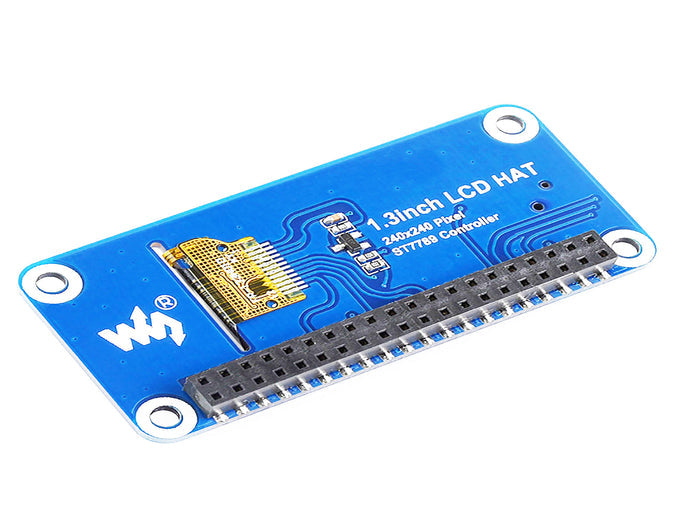

This is a 1.3-inch IPS display designed for the Raspberry Pi with a resolution of 240x240. The display has a built-in controller and an SPI interface. If you need to choose a compact screen for your Raspberry Pi, this screen will be a good choice.
<>
Features:
- • Available for 4B / 3B+ / Zero
- • IPS screen with wide viewing angle and outstanding display effect
- • Small size, high resolution, and high definition display
- • Onboard joystick and buttons
<>
Pin defines:
|
Pins |
IO of Pi |
Description |
|
KEY1 |
P21 |
Button1 |
|
KEY2 |
P20 |
Button2 |
|
KEY3 |
P16 |
Button3 |
|
Up |
P6 |
UP of joystick |
|
Down |
P19 |
DOWN of joystick |
|
Right |
P26 |
RIGHT of joystick |
|
Left |
P5 |
LEFT of joystick |
|
Press |
P13 |
PRESS of joystick |
|
SCLK |
P11/SCLK |
Clock of SPI |
|
MOSI |
P10/MOSI |
MOSI of SPI |
|
DC |
P25 |
Data/Cmd, Low for Cmd |
|
CS |
P8 |
CS of SPI |
|
RST |
P27 |
Reset |
|
BL |
P24 |
Backlight |
References:
- • How to use
