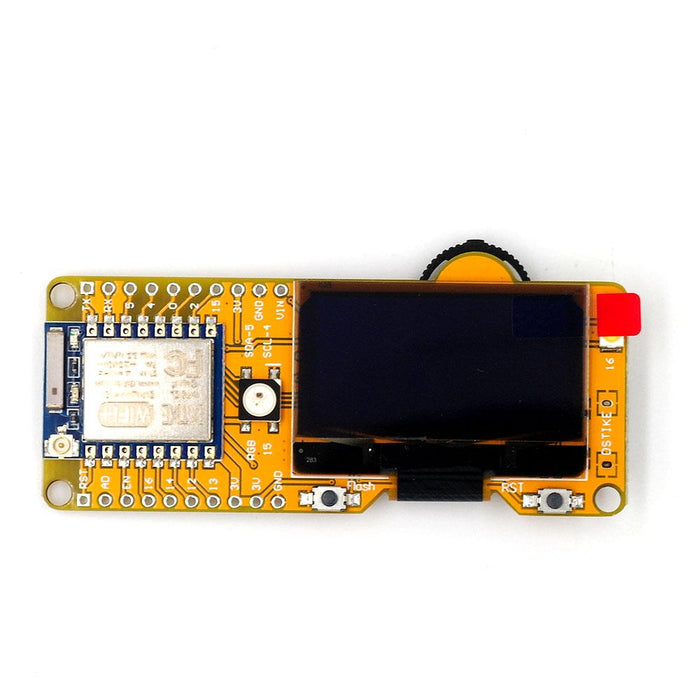

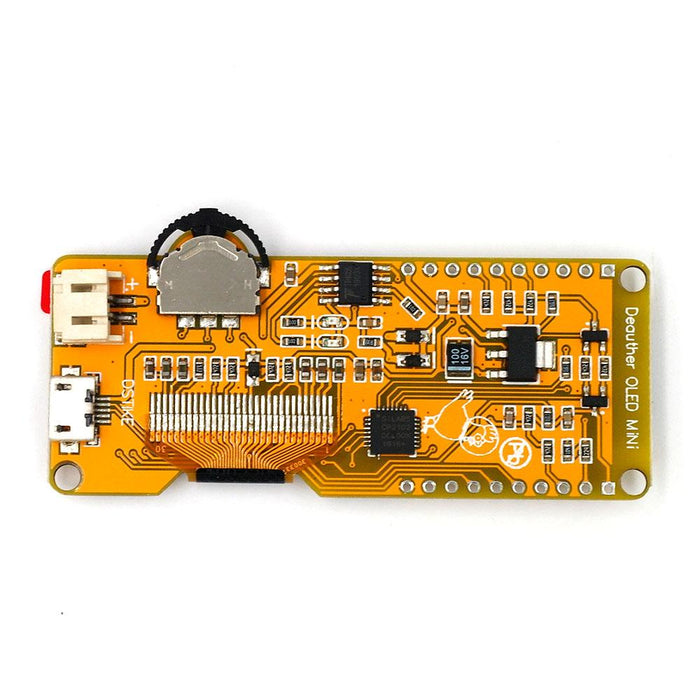

This tiny ESP8266 development board is a small version of our WiFi deauther projects. It comes installed with the latest ESP8266 Deauther software. With this software, you can perform different attacks to test WiFi networks.
NOTE:
• The ESP8266 does only support 2.4GHz.
• This development board is designed specially for Spacehuhn's great project: ESP8266 Deauther. It has been authorized by him and officially supported.
<>
Features:
- • Only ~80mA power usage
- • TP4056+PL5353A battery protection solution
- • Included 2dB antenna
- • All GPIO breakouts and 3.3 and 5V output

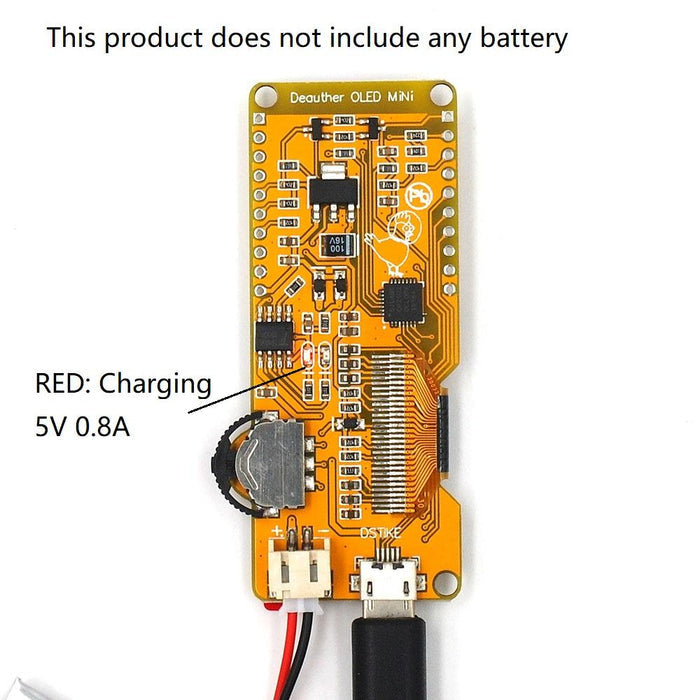

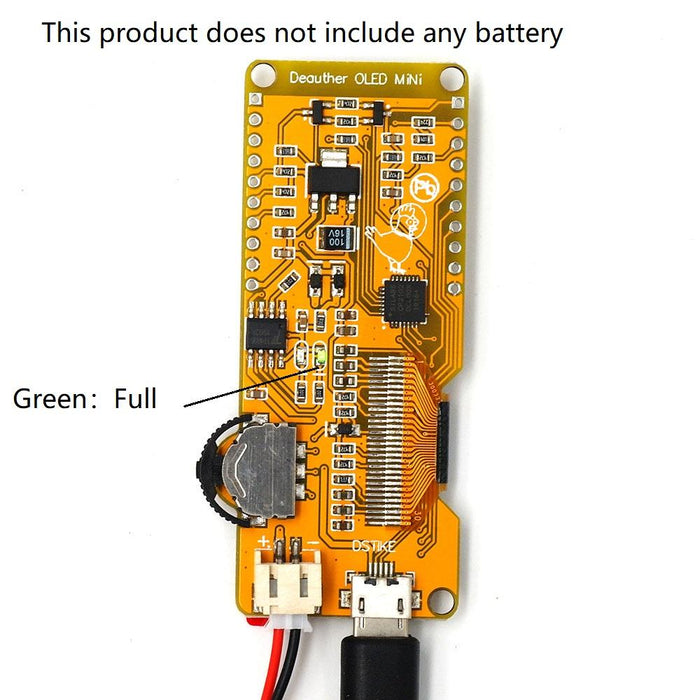

- • 2 LEDs to indicate battery charging status (Red:Charging,Green:Full)
- • Protection: short, over charging, over discharging, temperature
<>
GPIOs and Hardware info:
- • Display: SH1106 1.3" OLED
- • Display SDA: GPIO 5 (D1)
- • Display SCL/SCK: GPIO 4 (D2)
- • WS2812b LED: GPIO 15 (D8)
- • Button Up: GPIO 12
- • Button Down: GPIO 13
- • Button Select: GPIO 14
- • High Light LED: GPIO16
- • All ESP07 pins break out
<>

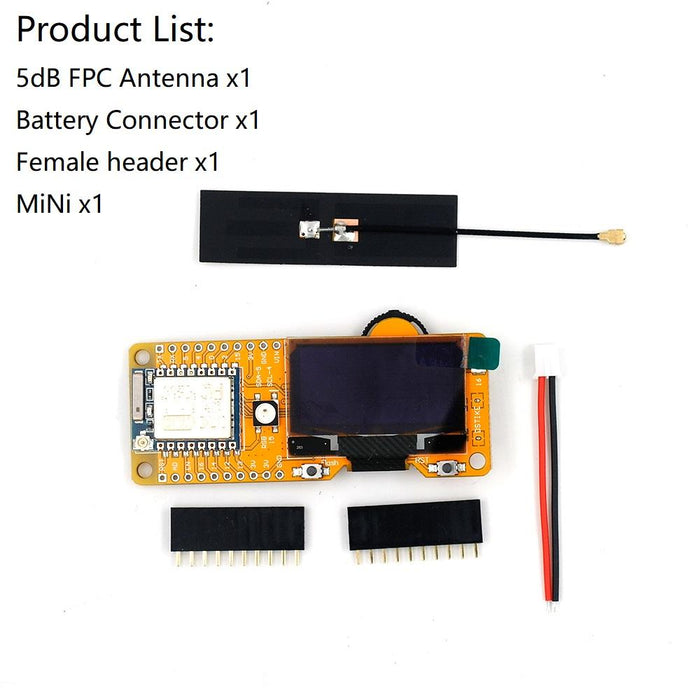

What is inside:
- • Deauther MiNi x1
- • 2db antenna x1
- • Female header x2
- • Battery connector x1
<>
Disclaimer:
- • Only for testing and educational purposes against your own devices.
- • Please check the legal regulations for your country to make sure you don't violate any laws.
<>
Reference:
- • How to Use
<>
Tech Support:
- • lspoplove@naver.com
