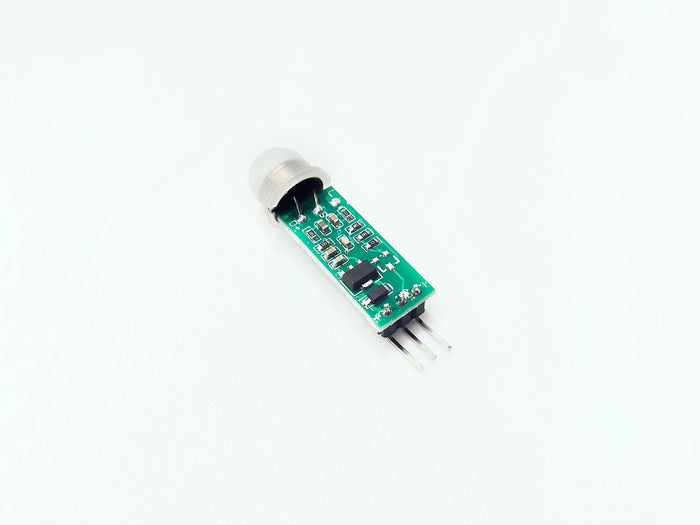

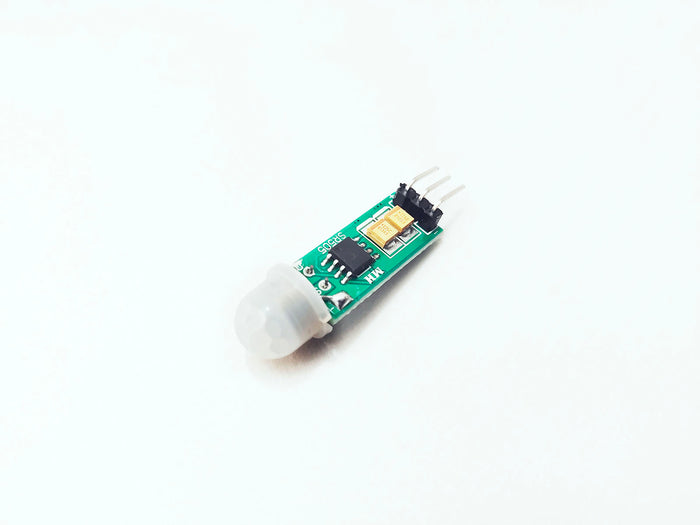

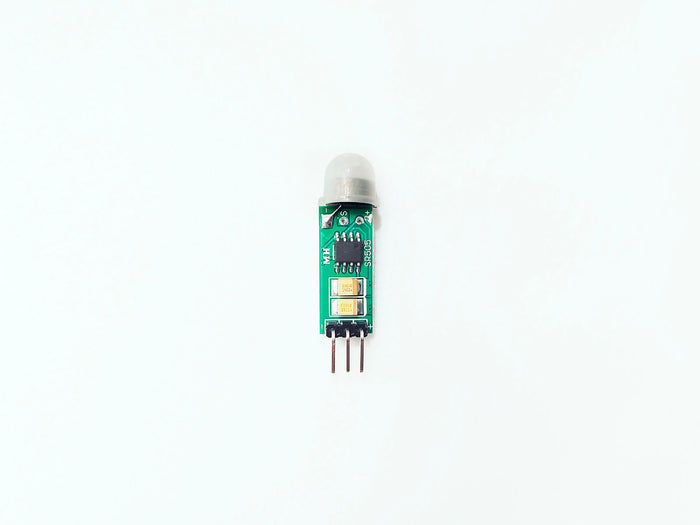

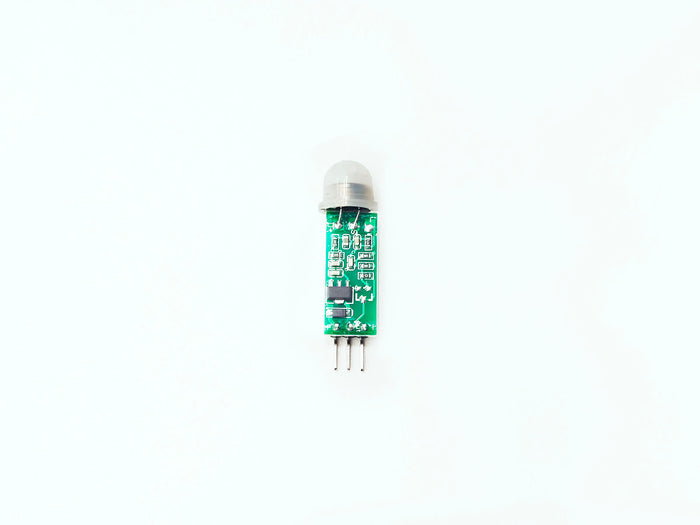

HC-SR505 Mini PIR Motion Sensor
$5.06
Sale price
$5.06
Regular price
$6.49
The module is an automatic control product based on infrared technology, with high sensitivity, strong reliability, small size and low power consumption. It is widely used in kinds of automatic induction electrical equipments.
Application ideas：
- • Human body induction lamp
- • Security product
- • Industrial automation control
- • Smart toys
<>
Features:
- • Input voltage: 4.5~20V
- • Static current: <50uA
- • Output: HIGH@3.3V, LOW@0V
- • Delay time: 8s
- • Induction angle： 100°
- • Induction distance: 3m
- • Working temperature: -20~80℃
<>
Pinout:
|
PIN |
Name |
Description |
| 1 |
+ |
VCC, 4.5~20V |
| 2 | OUT |
Signal |
| 3 | - |
GND |
<>
